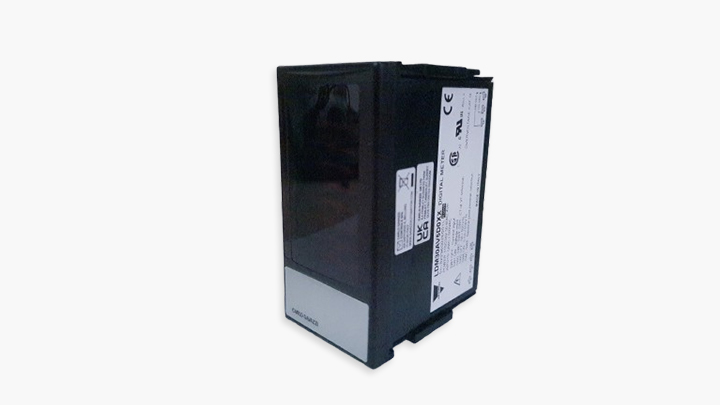

LDM30 Series Digital Panel Meters

We are Digital Panel Meters Suppliers, Distributors & Importers in Mumbai, Gujarat, India. Pushpa Automation offers Digital Panel Meters (LDM30 Series) designed for accurate and reliable AC current and voltage measurements. Engineered for modern industrial and commercial applications, these digital meters provide precise monitoring and an intuitive interface for efficient energy management.

Product Overview

The LDM30 series meters are microprocessor-based instruments featuring a 3-digit LED display with a dummy zero. They measure True RMS (TRMS) values of AC and voltage, ensuring accurate readings even in distorted waveform conditions. These meters are available in two configurations:

  • LDM30 AV1: 1A/100V AC
  • LDM30 AV5: 5A/500V AC

Technical Specifications

  • Input Range:
    1. Current: 1A (AV1) or 5A (AV5)
    2. Voltage: 100V (AV1) or 500V (AV5)
  • Accuracy: ±0.5% Full Scale (from 5% to 120% FS)
  • Operating Frequency: 45 Hz to 400 Hz
  • Display: 7-segment red LED, 14.2 mm, 4 digits
  • Protection Rating: IP50 (front) with IP65 option available
  • Power Supply Options:
    1. 24/48 VAC or 115/230 VAC (50/60 Hz)
  • Overload Protection:
    1. Continuous: 1.2x input
    2. 1 second: 5x input (current), 2x input (voltage)
  • Temperature Range: Operating: 0°C to +50°C, Storage: -10°C to +60°C
  • Mounting: Panel-mounted with compact dimensions (48 x 96 mm)

Key Features:

  • True RMS: Works under non-linear conditions.
  • Adjustable Input Ranges:Dip-switch selectable for multiple measurement requirements
  • Compact Design: Comes in space-efficient dimensions for fitting into standard DIN panel cutouts.
  • Enhanced Protection: Optional IP65 rating for use in demanding environments
  • Readability: Bright LED display for rapid reading and easy data interpretation
  • Energy Conserved: Efficient use of power to enable long-term industrial execution.

Applications

  • Industrial Automation: Reliable monitoring of electrical parameters in machinery and equipment.
  • Energy Management: Helps in energy auditing as well as optimisation across facilities.
  • Power Distribution Panels: Monitor voltage and current for load analysis and safety of the system.
  • HVAC systems: Keeps track of energy used for heating, ventilation, and cooling systems.
  • Renewable Energy: Guarantees precision in solar and wind energy systems.

Benefits

  • Low Error: Minimum Error In Measurement For Critical Applications
  • Rugged Build: ABS housing is rugged, self-extinguishing and safe.
  • Flexible Connection: Support for both CT and VT attachments for different applications.
  • Easy Configuration: DIP switches are used to set the range and the decimal point, making configuration quite easy.

Conclusion

Pushpa Automation LDM30 Digital Panel Meters are different from the competition. These meters are perfectly designed for numerous industrial applications, providing robust energy monitoring and management. Need any energy-measuring solutions, get in touch with Pushpa Automation
